Outdoor products

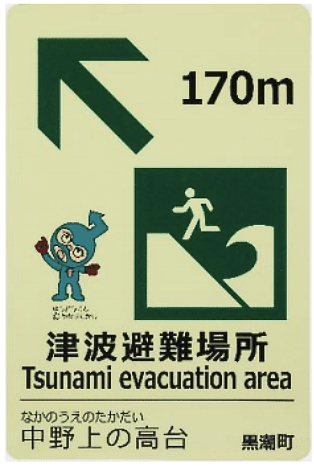

Aluminum Phosphorescent Sign

Characteristics

It is an aluminum sign board with a phosphorescent function. We manufacture products in sizes and patterns that meet the needs of our customers. Please contact us for details as it is a completely made-to-order product.

Aluminum Phosphorescent SignISO JIS

  • This product meets ISO 22578 Classification II and JIS Z 9098 Classification II.
  • Yellow green or Blue green emission
  • Achieved afterglow luminance of 13 mcd/㎡ after 720 minutes (12 hours) in a weather resistance test of 2,000 hours (equivalent to 10 years).
  • High weather resistance due to scratch - proof hard - processed coat and acrylic resin (PMMA).
  • Uses a phosphorescent pigment with extremely excellent water resistance, which was developed for long - term outdoor use.

Product information

Luminance time

Phosphorescent part

Aluminum part thickness

ISO 22578

JIS Z 9098

Maximum size

Material

Thickness

12h-

Phosphorescent pigments Acrylic adhesive (PMMA)

1.2mm± 0.4mm

0.5mm - 1mm

800mm × 1,200mm

  • You can select full - color printing (UV inkjet printing), rounding, four - corner drilling, backside bonding, etc. Please feel free to get in touch with us.
  • The thickness of the final product depends on the substrate used and the processing method.
  • JIS Z 9098 stipulates an evacuation guidance sign system to guide people in the affected areas to take prompt safety measures according to the type of disaster when a disaster occurs. Please visit here for more detail.

Public institution test data

Before accelerated weather resistance test

Elapsed time(min)

20

60

120

720

Luminance(mcd/㎡)

698

231

108

15

After accelerated weather resistance test (2,000 hours: equivalent to 10 years)

There were no noticeable changes in structural materials or design elements such as unevenness, peeling, breaks, cracks, tears, chalking, distortion, large scratches, and discoloration.

Elapsed time(min)

20

60

120

720

Luminance(mcd/㎡)

599

199

97

13

After corrosion resistance (salt spray / drying / wet) test (1,200 hours)

There were no noticeable changes in structural materials or design elements such as corrosion, unevenness, peeling, breaks, cracks, tears, chalking, distortion, large scratches, or discoloration.

Elapsed time(min)

20

60

120

720

Luminance(mcd/㎡)

676

220

106

14

The above test methods and test conditions are as follows;

  • Measurement of the photoluminescence according to ISO 22578 and JIS Z 9098.
  • Test method: Xenon lamp Irradiation with UV intensity 400 μW / ㎠ for 60 minutes.
  • Inspection organization: Japan Paint Inspection Association.
  • The phosphorescence brightness after 720 minutes is a result measured by the Japan Paint Inspection Association, and is not a guaranteed value.

Test items that have been conducted

■ Luminance of phosphorescent material ■ Daytime color of phosphorescent material
■ Adhesion of surface printing ■ Wiping resistance ■ Weather resistance ■ Chemical resistance
■ Contamination resistance ■ Shock resistance ■ Water resistance ■ Flame resistance
■ Moisture resistance ■ Abrasion resistance ■ Bending strength
■ Corrosion resistance Recommended by Japan Marking Industry Association
