Phosphorescent material

Phosphorescent Sheet

Characteristics

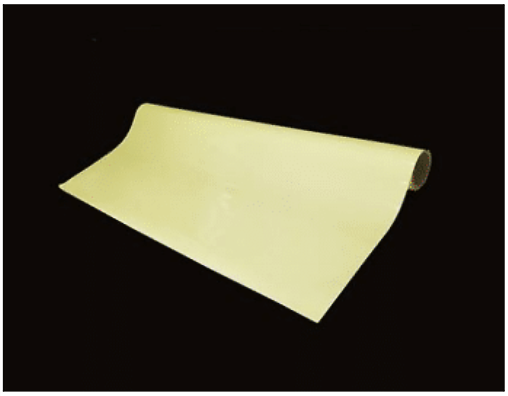

This is a thin sheet made from phosphorescent material using a unique coating technology. It can also be used outdoors by attaching a weather resistant film.

Phosphorescent Sheet ISOASTM

  • This product meets ISO 22578:2021 Classification I and JIS Z 9098:2016 Classification I.
  • Yellow green emission
  • It is water resistant and flame resistant because it uses PET film on the surface. In addition, PET film does not generate any harmful substances such as dioxins even when burned.
  • Adhesive processing is applied to the back side, so it can be easily attached.
  • It is used not only as a safety measure in the event of a disaster, but also as an interior and miscellaneous goods.

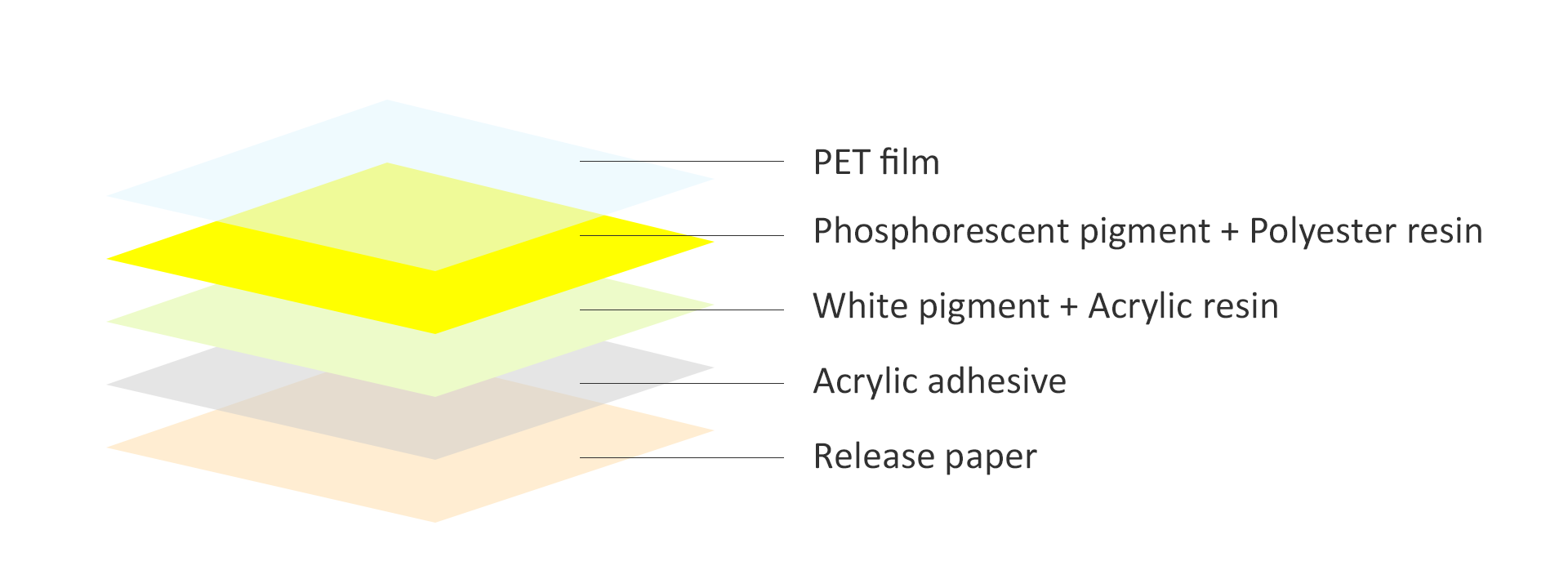

Structural of phosphorescent sheet

Structural of phosphorescent sheet

Line up & Product information

Ultra - high luminance phosphorescent sheet

Luminance time

Thickness

ISO 22578

JIS Z 9098

DIN 67510

JIS Z 9107

Packing size

10-12h

0.6mm

E

JD

1,200mm × 31m

  • You can select full - color printing (UV inkjet printing and silk screen printing), cutting, punching, etc. Please feel free to get in touch with us.
  • When using it outdoors, be sure to apply a sealing process such as edge tape to prevent water from entering from the edges. We are not responsible for any defects caused by construction.
  • JIS Z 9098 stipulates an evacuation guidance sign system to guide people in the affected areas to take prompt safety measures according to the type of disaster when a disaster occurs. Please visit here for more detail.
  • JIS Z 9107 stipulates the performance standards and test methods required for color materials for safety signs, expected usage environments, main structural materials, lighting methods, mounting methods, etc. Please visit here for more detail.

Public institution test data

Before accelerated weather resistance test / ISO 22578 and JIS Z 9098

Elapsed time(min)

20

60

120

720

Luminance(mcd/㎡)

402

117

52

6

Measurement of the photoluminescence according to ISO 22578:2021 and JIS Z 9098:2016
Test method: Xenon lamp Irradiation with UV intensity 400 μW/㎠ for 60 minutes
Inspection organization: Japan Paint Inspection Association

  • The phosphorescence luminance after 720 minutes is a result measured by the Japan Paint Inspection Association, and is not a guaranteed value.

Before accelerated weather resistance test / DIN 67510

Elapsed time(min)

2

10

30

60

Luminance(mcd/㎡)

2,960

660

210

94

Measurement of the photoluminescence according to DIN 67510-4:2008-02
Test method: Xenon lamp 1,000 lux for 5 minutes
Inspection organization: Federal Institute of Metrology METAS Schweizerische Eidgenossenschaft

High luminance phosphorescent sheet

Luminance time

Thickness

ISO 22578

JIS Z 9098

DIN 67510

JIS Z 9107

Packing size

6-8h

0.4mm

D

JC

1,200mm × 51m

  • Although it can be used outdoors, it is recommended for indoor evacuation guidance and safety measures.
  • When using it outdoors, be sure to apply a sealing process such as edge tape to prevent water from entering from the edges. We are not responsible for any defects caused by construction.
  • You can select full - color printing (UV inkjet printing and silk screen printing), cutting, punching, etc
  • JIS Z 9098 stipulates an evacuation guidance sign system to guide people in the affected areas to take prompt safety measures according to the type of disaster when a disaster occurs. Please visit here for more detail.
  • JIS Z 9107 stipulates the performance standards and test methods required for color materials for safety signs, expected usage environments, main structural materials, lighting methods, mounting methods, etc. Please visit here for more detail.

Public institution test data

Before accelerated weather resistance test / ISO 22578 and JIS Z 9098

Elapsed time(min)

20

60

120

720

Luminance(mcd/㎡)

221

65

21

3

Measurement of the photoluminescence according to ISO 22578:2021 and JIS Z 9098:2016
Test method: Xenon lamp Irradiation with UV intensity 400 μW/㎠ for 60 minutes
Inspection organization: Japan Paint Inspection Association

  • The phosphorescence luminance after 720 minutes is a result measured by the Japan Paint Inspection Association, and is not a guaranteed value.

Before accelerated weather resistance test / DIN 67510

Elapsed time(min)

2

10

30

60

Luminance(mcd/㎡)

1,406

292

91

40

Measurement of the photoluminescence according to DIN 67510-4:2008-02
Test method: Xenon lamp 1,000 lux for 5 minutes
Testing institution: Federal Institute of Metrology METAS Schweizerische Eidgenossenschaft

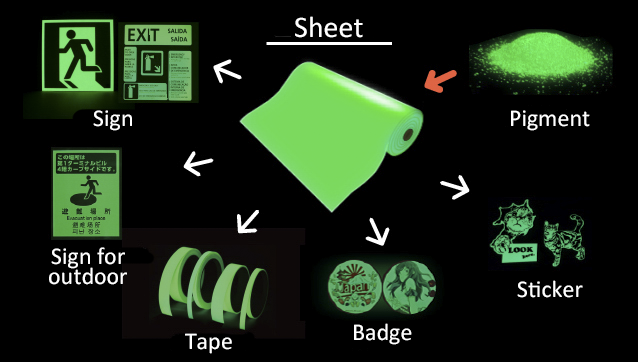

Processing example

Processing example
